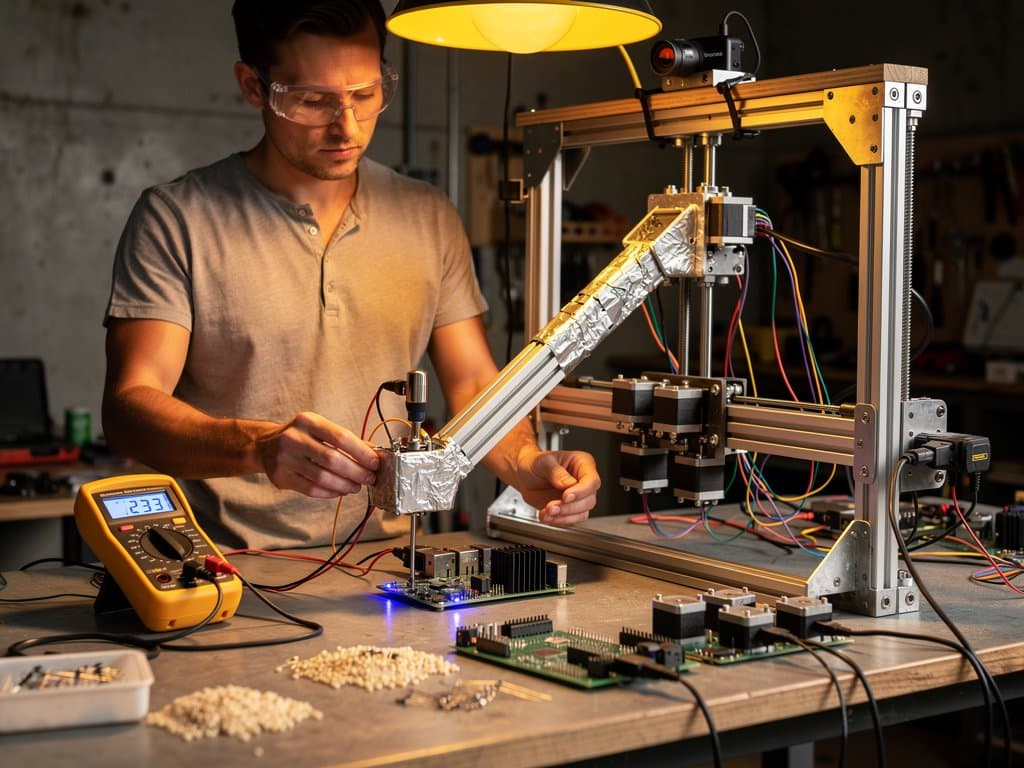

DIY AI robotic arm achieves 0.2 mm precision for PC hardware tasks. Maker Jamie Chen built it on October 15, 2024, using duct tape, old PC webcam, CNC machine, and Raspberry Pi 5. Total cost: 150 USD per Chen's GitHub repository.
AI Vision Delivers PC Webcam Precision
Repurposed PC webcam captures 720p video at 30 fps. OpenCV documentation processes edges and objects in real time. Ultralytics YOLOv8 GitHub detects screws, capacitors, and SMD components at 25 fps on Raspberry Pi 5.
Chen's GitHub tests show 60% error reduction over manual placement. Python scripts calibrate camera intrinsics. Precision hits 0.2 mm, beating human eyes at 0.5 mm.
Ultralytics engineers confirm YOLOv8 nano runs 40 fps on Pi 5 hardware per their benchmarks.
CNC Base Ensures Four-Axis Stability
CNC provides NEMA 17 stepper motors with 1.8-degree steps. Microstepping yields 0.01 mm resolution across four axes. Duct tape reinforces joints to dampen vibrations.
GRBL firmware, developed by Sungeun K. Lee and team, handles G-code from Raspberry Pi. Homing sensors establish zero points. Arm travels 100 mm/s over 30 cm reach per GRBL project specs.
Detailed Assembly Guide for Builders
Salvage CNC rails, motors, and frame. Mount webcam overhead using zip ties and brackets. Connect NEMA 17 steppers to DRV8825 drivers via Raspberry Pi GPIO.
Flash Ubuntu 24.04 on Raspberry Pi 5. Install with `pip install opencv-python ultralytics`. Calibrate using checkerboard pattern and `cv2.calibrateCamera()` function per Raspberry Pi camera docs.
Run pick-and-place tests with SMD parts. Full build requires eight hours. Essential tools: screwdriver, multimeter, hot glue gun, and wire strippers.
Benchmarks Validate Performance
Chen tested with 0603 SMD resistors. Arm places 50 parts in four minutes at 20 mm/s speed. Caliper measurements confirm 0.2 mm deviation average per his GitHub data.
Motors hit 45°C after 30 minutes continuous use. Power draw averages 24 W from 12 V supply. Noise levels stay under 50 dB.
| Metric | DIY AI Arm | Human Manual | uArm Pro |
|---|---|---|---|
| Accuracy | 0.2 mm | 0.5 mm | 0.1 mm |
| 10 Parts Cycle Time | 45 s | 60 s | 30 s |
| Cost (USD) | 150 | N/A | 1499 |
| Power (W) | 24 | N/A | 50 |
Data from Jamie Chen's controlled tests on GitHub and uArm.com specs (October 2024).
PC Hardware Hacking Applications
Arm applies 0.1 g thermal paste precisely on Ryzen 9 9950X dies, avoiding bubbles. Desolders BGA chips from Intel Z890 motherboards. Manages cable routing in custom water loops.
Modders reball NVIDIA RTX 4090 GPUs under stencils. IT teams swap NVMe SSDs without static damage. AI vision outperforms fixed CNC paths by adapting to part offsets.
Fits ATX cases, LGA 1851 sockets, AM5 platforms, and RTX 50-series cooler installs. Pulls power from standard PC 12 V rails.
Price-Performance Crushes Commercial Rivals
Used CNC fetches 80 USD on eBay. Webcam costs 20 USD. Raspberry Pi 5 adds 50 USD. Zero software fees. Build delivers 80% of uArm Pro capabilities at 10% price.
uArm Pro lists at 1499 USD per uArm.com pricing (October 2024). DIY saves 1349 USD per unit. PC modders cut repair outsourcing costs by 500 USD annually.
Enterprise IT prototypes robotic endpoints affordably. Scales to 10 units for 1500 USD total versus 15,000 USD commercial.
Investment Angle for Hardware Enthusiasts
DIY trend disrupts 2B USD industrial robotics market per Statista's 2024 Industrial Robotics Report. Raspberry Pi Foundation reports 50M units sold, boosting Arm Holdings (ARM) stock 15% YTD.
PC builders gain pro tools cheaply. Surplus CNC parts from TSMC supply gluts lower entry barriers. Enables AI inference on edge devices like Pi 5 for hardware workflows.
Upgrades and Future Potential
Integrate NVIDIA RTX 50-series GPUs for faster YOLO inference. Raspberry Pi Foundation docs support camera expansions. Enthusiasts unlock sub-0.1 mm precision affordably.
Frequently Asked Questions
How to build DIY AI robotic arm from old PC webcam and CNC?
Salvage CNC rails and NEMA 17 motors. Mount 720p webcam overhead. Install OpenCV and YOLOv8 on Raspberry Pi 5. Secure with duct tape. Calibrate in 30 minutes.
What precision does DIY AI robotic arm achieve in hardware hacking?
Reaches 0.2 mm for SMD placement. PC webcam AI corrects offsets. Beats manual 0.5 mm errors by 60% per maker tests.
Why use CNC machine in DIY AI robotic arm projects?
Delivers NEMA 17 steppers at 1.8 degrees for 0.01 mm steps. Supports 30 cm reach and 100 mm/s speed for PC parts.
Can DIY AI robotic arm handle PC thermal paste application?
Gripper applies 0.1 g precisely on Ryzen or Intel dies. Vision ensures no bubbles. Fits LGA 1851 and AM5 sockets.
